YLI YP902123 - Power Supply for Access Control with Cabinet: Includes NO/NC Relay, Short Circuit Protection, and Backup Battery Support
- SKU YP-902-12-3
- Categoria CCTV Industrial > Fuentes de Energía > Fuentes de Poder y Adaptadores
Información General

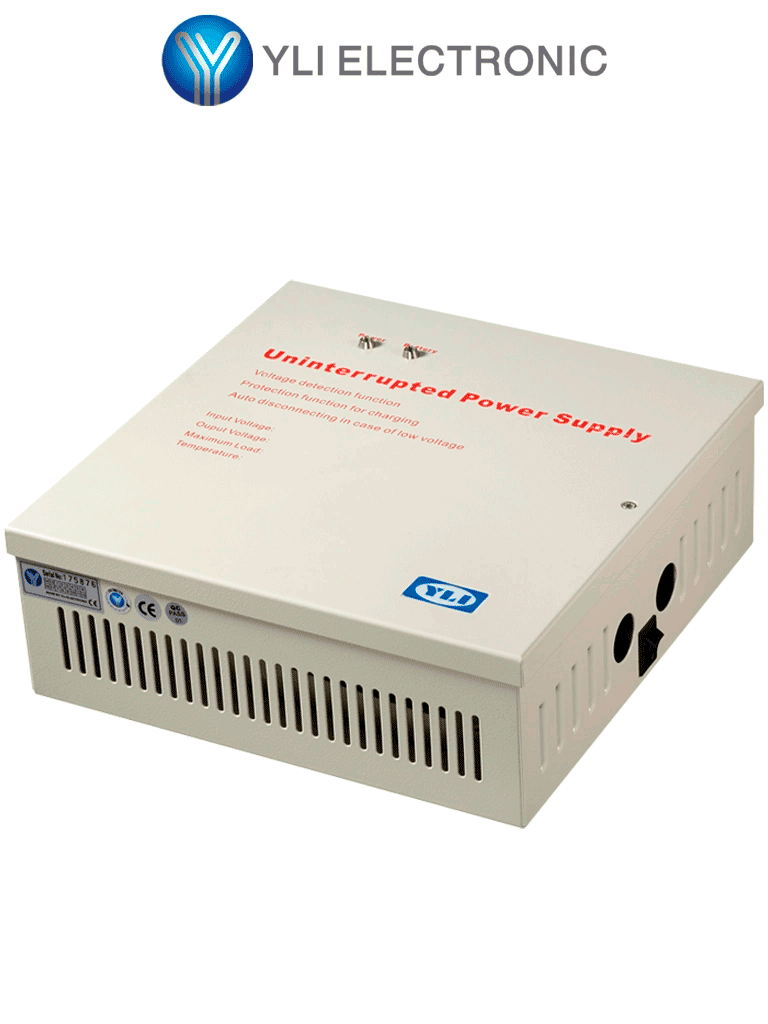

The YP902123 from YLI is a high-performance automatic UPS controller, manufactured with quality components and advanced technology. It is compatible with any access control system and has the capacity to integrate a backup battery, ensuring continuous and uninterrupted operation.
Practical and robust, its simple interface makes it easy to use. Thanks to its intelligent design, the output automatically cuts off if the battery voltage is too low, effectively protecting the battery and preventing the dead point phenomenon due to low voltage. With the YP902123, you can rely on a safe and reliable power supply at all times.
Features and Specifications
- Dimensions: 226 x 226 x 82 (mm)
- Output voltage: 12 Vdc
- Output power: 30 w
- Input voltage: 100 Vac 50/60 Hz
- Opening delay adjustment (relay activation): 1 to 15 seconds
- Operating humidity: < 95%
- Led indicator: 2 operation
- Weight: 2.40 Kg
- Backup battery: Lead acid (NOT included)
TVC Content
Diagrams
Frequently Asked Questions
What backup batteries is it compatible with?
It is compatible with rectangular batteries: CBAT7AH (Code: TVN083048) and CBAT8AH (Code: SXN2360001)
What current values does the relay output deliver?
According to the technical data sheet, the relay output values would be: 12 volts and 30 watts, which translates to 2.5 amps of current.
Download datasheets/manuals
Información General
The YP902123 from YLI is a high-performance automatic UPS controller, manufactured with quality components and advanced technology. It is compatible with any access control system and has the capacity to integrate a backup battery, ensuring continuous and uninterrupted operation.
Practical and robust, its simple interface makes it easy to use. Thanks to its intelligent design, the output automatically cuts off if the battery voltage is too low, effectively protecting the battery and preventing the dead point phenomenon due to low voltage. With the YP902123, you can rely on a safe and reliable power supply at all times.
Features and Specifications
- Dimensions: 226 x 226 x 82 (mm)
- Output voltage: 12 Vdc
- Output power: 30 w
- Input voltage: 100 Vac 50/60 Hz
- Opening delay adjustment (relay activation): 1 to 15 seconds
- Operating humidity: < 95%
- Led indicator: 2 operation
- Weight: 2.40 Kg
- Backup battery: Lead acid (NOT included)
TVC Content
Diagrams
Frequently Asked Questions
What backup batteries is it compatible with?
It is compatible with rectangular batteries: CBAT7AH (Code: TVN083048) and CBAT8AH (Code: SXN2360001)
What current values does the relay output deliver?
According to the technical data sheet, the relay output values would be: 12 volts and 30 watts, which translates to 2.5 amps of current.
