ZKTECO FHT3300 - Full Height Modular Turnstile, SUS304 Stainless Steel, IP54, 110 / 220 Vac Compatible, 3 Rotating Bars, High Durability 1 Million Cycles, Capacity of 20 People per Minute
- SKU FHT3300
General Information

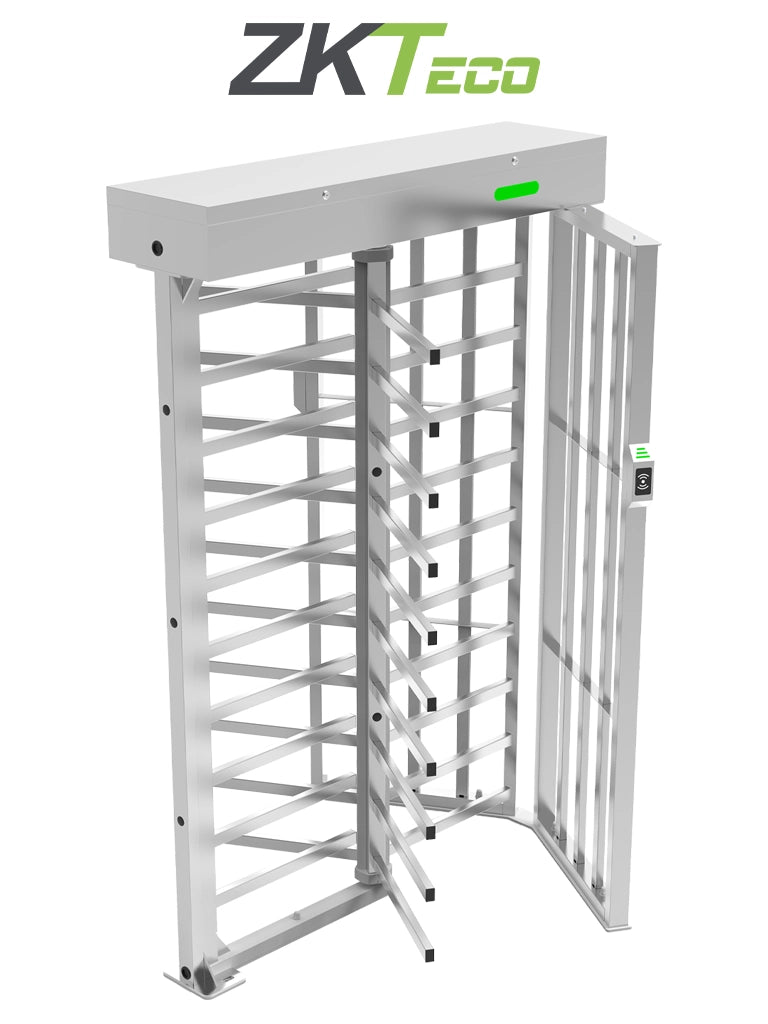

The ZKTeco FHT3300 series turnstile features a modular full-height turnstile design, with arms that open at a 120-degree angle, providing a comfortable and fluid passage for users. This model offers a superior level of security, ideal for unattended environments. With its robust and elegant design, the FHT3300 combines advanced functionality and reliable security, adapting perfectly to various access control applications.
Main Features
Durability • Made entirely of SUS304 stainless steel for greater strength and durability.
Modularity • Rotary shaft with modular design that facilitates installation and maintenance.
Security • Excellent queue prevention capability; allows only one person to pass at a time.
Emergency Security • In case of emergency, the turnstile automatically unlocks, allowing free passage by pushing it.
Convenience • LED indicator lights on both sides guide users during passage.
Technical Specifications
Power Requirements • AC110V/220V, 50/60Hz
Operating Temperature • -28°C to 60°C
Transit Speed • Maximum 20 people/minute
Lane Width • 600 mm
MCBF (Mean Cycles Between Failures) • 1 million
Ingress Protection • IP54
Dimensions with Packaging (Length * Width * Height) • 1200 * 2100 * 1200 mm
Includes
Under construction ...
TVC Content
Under construction ...
Frequently Asked Questions
Does the turnstile come with an access control panel and readers included?
This version of the turnstile does not include a panel or readers. But it is compatible with any access control panel (2-door recommended)
Is the turnstile Bi-directional (rotates in both directions)?
Yes, this turnstile model can be used for bi-directional access control solutions, controlling both entry and exit to a site.
Does the turnstile support outdoor solutions?
Yes, it is suitable for outdoor solutions due to its IP54 protection rating.
Note: Due to its dimensions, this product incurs an additional freight cost.
Download technical sheets/manuals
