ZKTECO FR1500SMF - Lector Esclavo De Huella BIO ID Tarjetas Mifare 13.56 Mhz / IP65 / RS485 y Led Indicador de Estado / Compatible con Paneles InBio
ZKTECO FR1500SMF - Lector Esclavo De Huella BIO ID Tarjetas Mifare 13.56 Mhz / IP65 / RS485 y Led Indicador de Estado / Compatible con Paneles InBio
Disponible:
En Stock
- SKU FR1500S- Mifare
$ 1,868.00 MXN
General Information
Description

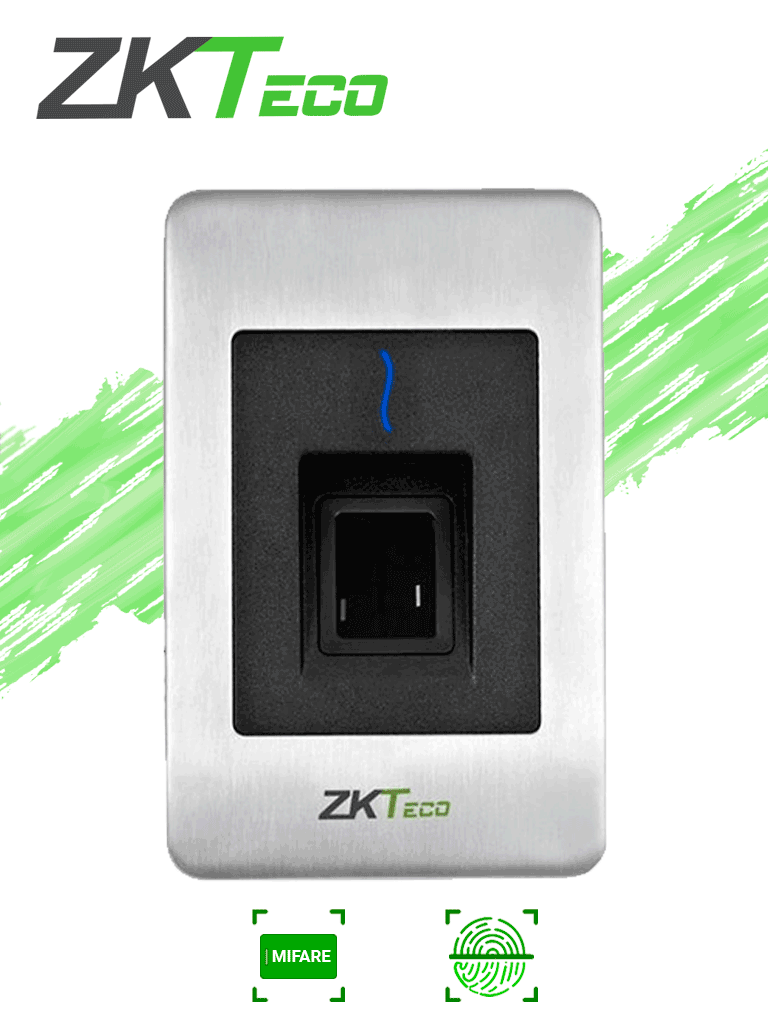

ZKTeco FR1500SMF is a compact biometric fingerprint reader with an integrated RFID card reader for indoor or outdoor use. It features an RS485 communication interface and functions as a slave reader for connection with inBIO series access panels.
Main features
- BIOID fingerprint sensor.
- Live tissue detection.
- Elegant design for flush wall installation.
- RS-485 communication interface.
- Stainless steel front housing.
- Standard junction box.
- Protective cover for fingerprint sensor (optional).
Technical specifications
- Communication: RS485
- Operating Temperature: -10°c to 45°C
- Operating Humidity: 20%- 95%
- Dimensions: 121.3 x 77.3 x 38 mm
- Algorithm Version: ZKFinger VX10.0
- Power Supply: 12VDC
- Standby Consumption: 12V*60mA = 0.72W
- Fingerprint Analysis Consumption: 140 mA
- Hardware: 1.0 GHz CPU
- Sensor: BIOID
- Alarm: Audible (BEEP)
- LED: Three-color Indicator Light
- Protection Rating: IP65
- Standard Functions: MIFARE (S50/S70) 13.56MHz
- Compatibility: InBio / InBio Pro Panels and some Standalone Devices
Content
- 1 Biometric FR1500
- 1 Test card
- 1 User manual
- 1 Warranty policy
- 1 Disassembly tool
- 1 Set of mounting screws
Download technical sheets/manuals
