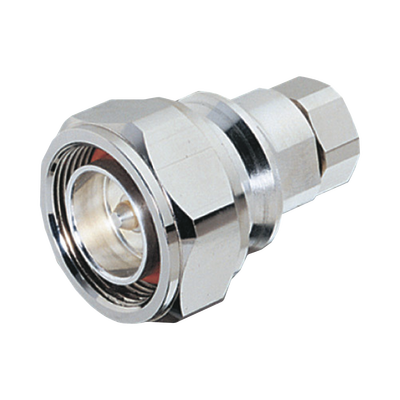

Conector DIN 7/16 Macho Para Cable FSJ4-50B
Review: 5 -
Rated 5/5 based on 11 customer reviews
"Excelentes productos" by , written onJun 4, 2021
Los productos siempre en tiempo y forma.
Vigilancianetwork 1

Conector DIN 7/16 Macho Para Cable FSJ4-50B

Available: In Stock
$ 664.37 MXN

Electrical Specifications

  • Connector Impedance: 50 ohm
  • Operating Frequency Band: 0 – 7500 MHz
  • Average Power at Frequency: 1.0 kW @ 900 MHz
  • Cable Impedance: 50 ohm
  • 3rd Order IMD, typical: -120 dBm @ 910 MHz
  • 3rd Order IMD Test Method: Two +43 dBm carriers
  • RF Operating Voltage, maximum (vrms): 884.00 V
  • dc Test Voltage: 2500 V
  • Outer Contact Resistance, maximum: 1.50 mOhm
  • Inner Contact Resistance, maximum: 0.80 mOhm
  • Insulation Resistance, minimum: 5000 MOhm
  • Peak Power, maximum: 15.60 kW
  • Insertion Loss, typical: 0.05 dB
  • Shielding Effectiveness: -110 dB
Additional Information
  • Insertion Loss Formula: 0.05√¯freq (GHz) (not applicable for elliptical waveguide)

Descarga la ficha técnica aquí

Electrical Specifications

  • Connector Impedance: 50 ohm
  • Operating Frequency Band: 0 – 7500 MHz
  • Average Power at Frequency: 1.0 kW @ 900 MHz
  • Cable Impedance: 50 ohm
  • 3rd Order IMD, typical: -120 dBm @ 910 MHz
  • 3rd Order IMD Test Method: Two +43 dBm carriers
  • RF Operating Voltage, maximum (vrms): 884.00 V
  • dc Test Voltage: 2500 V
  • Outer Contact Resistance, maximum: 1.50 mOhm
  • Inner Contact Resistance, maximum: 0.80 mOhm
  • Insulation Resistance, minimum: 5000 MOhm
  • Peak Power, maximum: 15.60 kW
  • Insertion Loss, typical: 0.05 dB
  • Shielding Effectiveness: -110 dB
 Additional Information
  • Insertion Loss Formula: 0.05√¯freq (GHz) (not applicable for elliptical waveguide)

More information about Insertion Loss formula Info

Descarga la ficha técnica aquí
