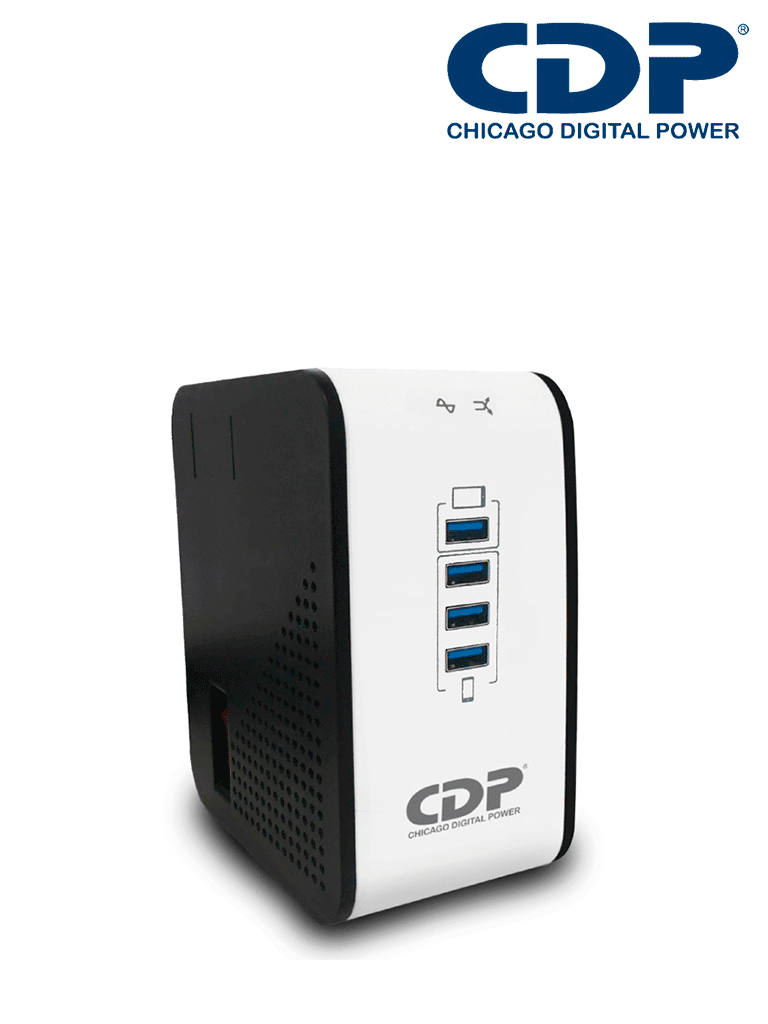

CDP R2CU-AVR1008 - Regulador de Voltaje de Escritorio / NEMA 5-15 / 1000VA / 500W / 8 tomacorrientes / 1 tomacorriente para carga de tablet / 3 tomacorrientes para carga de smartphone
- SKU R2CU-AVR1008
- Categoria CCTV Industrial > Fuentes de Energía > Reguladores y UPS
Technical Features
The new and advanced R2CU automatic voltage regulator is the most complete and offers the best quality in all its components.
It has 8 outlets, corrects low and high voltages and filters against harmful transients and voltage spikes.
Delivers clean, regulated 120 VAC power.
It features an exclusive 4-port smart USB charger with a maximum power of 2,400mAH, 3 ports for smartphones and one port for portable tablets and wireless speakers, making this series the most complete.
Important to Read:
We have equipment specially designed for your requirements, if you require a special system for the protection of your equipment, please let us know.
Specifications
Model R2CU-AVR 1008
Capacity
Rated power: 1000 VA / 500 W
Input
- Voltage: 120 VAC
- Frequency: 50/60 Hz ± 3%
- Voltage range: 92 VAC - 144 VAC
- Maximum input current (Bypass): 8 A (max.)
Output
- Voltage: 120 VAC
- Frequency: 50 Hz - 60 Hz
- Voltage range: 116 VAC ± 12%
- Number and type of outlets:
- 4 NEMA 5-15R with AVR and surge suppression
- 4 NEMA 5-15R with surge suppression only
- Maximum output current (Bypass): 6 A (max.)
Protection
- Overload: Breaker
- Short circuit: Breaker
- Overheating protection: Breaker
- Surge protection: 175 Joules
USB and LED
- USB ports:
- 2 Amp x 1 pc
- 1 Amp x 3 pcs (5 V, 2.1 A max.)
- LED indicators:
- Blue
- Yellow
Physical
- Dimensions: 125 x 77 x 146 mm
- Net weight: 1.11 kg
Environment
- Humidity: 0%-95% (non-condensing)
- Noise level: Less than 40 dBA @ 1 meter
Power On/Off and Regulation
- Automatic regulation: Yes
- Power cable: NEMA 5-15P, 0.5 mm, 1 m long
Certifications
- ISO 9001
- ISO 14001
- CIDET
- NOM
Product Comparison Table:
Learn about our range of solutions and backup times depending on your needs.
In these articles you can find important information for your projects:
CDP Compatibility Table with Dahua Products
CDP Backup Time Comparison Table
